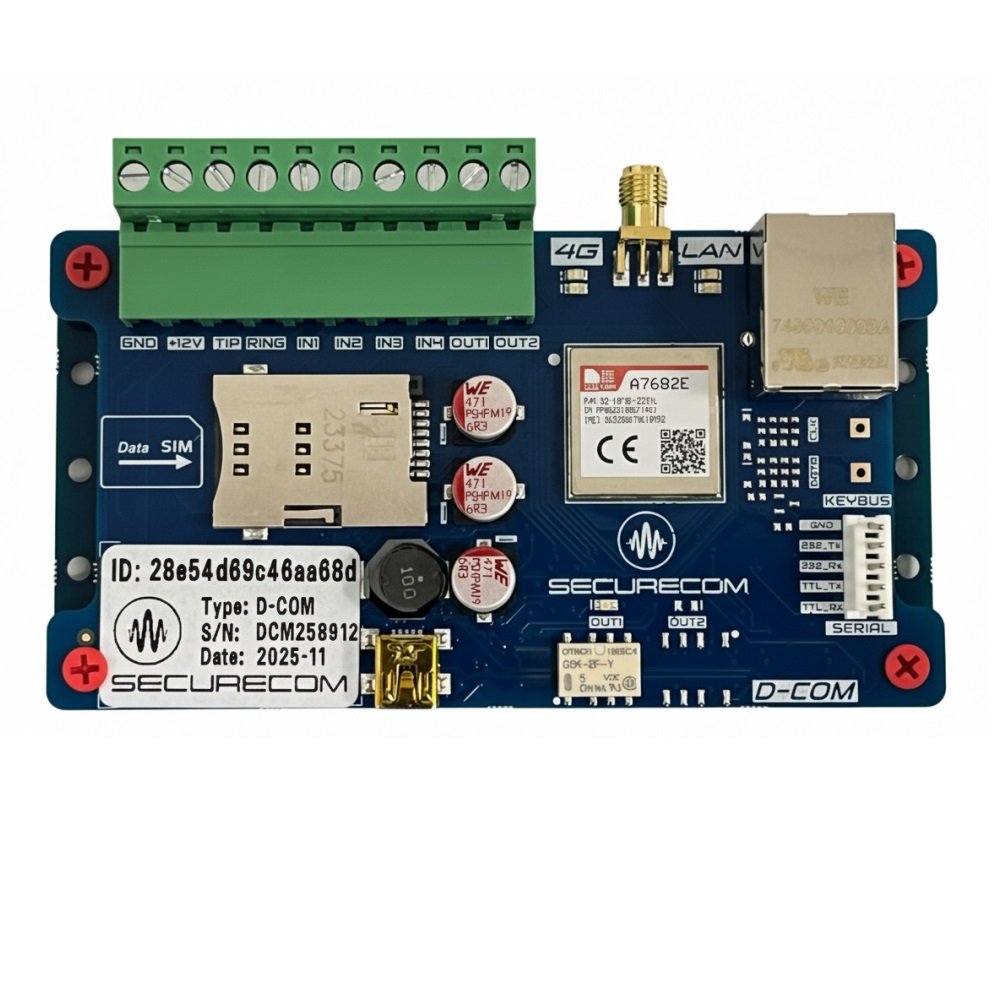

D-COM
Advanced remote monitoring communicator with up to 3 different transmission channels.
2 mobile networks and 1 Ethernet connection option, with adjustable transmission priority.
Converts alarm system CONTACT ID event codes to SIA IP format and transmits them to monitoring receivers in accordance with the SIA DC-09 standard.
Complete remote management system and transparent serial transmission for remote alarm programming.
Features
- Network connection: LTE (4G) + Ethernet (LAN)
- Dual SIM option
- Emulates landline (TIP/RING) for alarm system
- 2 controllable relay outputs (for a maximum of 2 partition systems)
- 4 contact inputs
- Remote monitoring connection to 2 independent SIA DC-09 IP receivers
- Setup via USB connection or website
- TTL/RS-232 serial port for remote programming of alarms (Paradox and DSC)
- Full remote management via web interface (configuration, diagnostics)
- Unlimited number of signals with simultaneous notification of all users
- AES-128 encryption

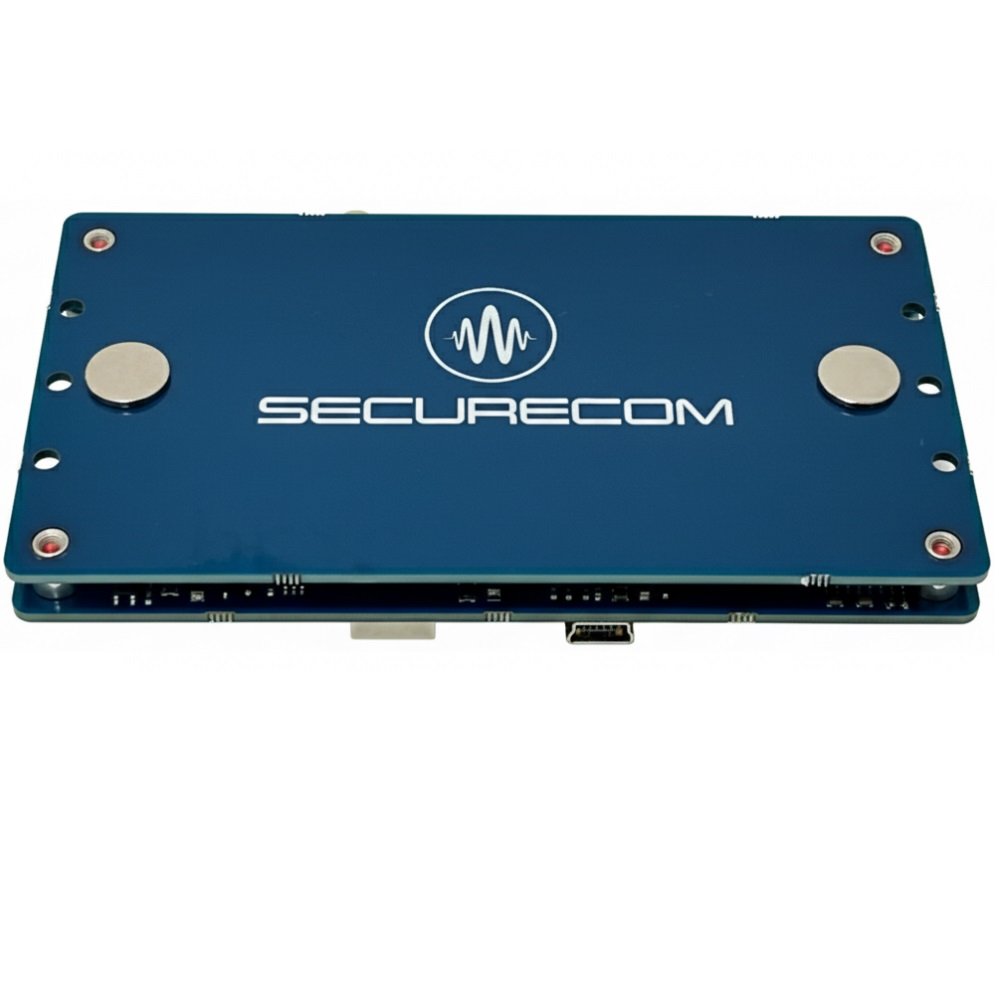

- Magnetic mounting in the alarm box
- DIN rail compatible
Application
Professional remote monitoring communicator
FAQ
Which alarm receivers accept D-COM’s SIA DC-09 signal?
D-COM sends Contact ID events in SIA DC-09 (SIA IP) format over 4G and/or Ethernet to up to two receivers. It works with any receiver that accepts SIA DC-09, for example Sur-Gard receivers, so monitoring stations can use the receivers they already have.
