GATE CONTROL DEVICES – BASED ON WIFI AND 2G OR 3G CONNECTION

CONTROLLING GATE OR GARAGE DOOR BY SMARTPHONE


DP-GSM Intercom	UP200-GSM Intercom	UP200-GSM RD Intercom
2G/3G cellular intercom with gate control function and IoT based remote management. More info	Wireless intercom with 2 pushbuttons. Intercom and access control unit operating on mobile GSM network. More info	Wireless intercom with 1 pushbutton. Intercom and access control unit operating on mobile GSM network. More info

DP DOOR-I WIFI garage door opener	XDOOR 3 IoT GSM gate controller
Controlling of gate or garage door by smartphone, with real feedback about the position of the gate and no communication cost. More info	Control of 3 different electric gates by smartphone of settnig a temporary authorization code for access control keypad. More info

Serial download cable for remote programming of DSC alarm panels
Features

Simple and cheap connecting cable

Provides full access to the remote alarm

Application

For all types of DSC alarm panel
-
Cable5-DSC
Read more
Serial download cable for remote programming of Paradox alarm panels
Features

Simple and cheap connecting cable

Provides full access to the remote alarm

Application

For all types of Paradox alarm panel
-
Cable5-PAR
Read more
SIM card for non remotely manageable devices
Features

Maximum 30,000 test or alarm signals per month
(3 minute test report for 2 parallel receivers)

10 MB/month data traffic
-
DATA SIM 10
Read more
SIM card for remotely manageable devices

Features
Coverage of data usage for remote monitoring signalling

Coverage of data usage for remote management
(including serving the mobile App)

20 MB/month data traffic
-
DATA SIM 20
Read more
- Controlling gate from mobile app
- Controlling gate via telephone number identification
Applications:
-
DP Door W4G
Read more

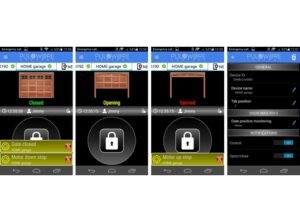

Controlling of gate or garage door by smartphone
- WiFi (2.4GHz) connection for remote control
- Bluetooth connection for local control
- 2 configurable WiFi networks (main and auxiliary)
- Signaling and control via mobile app
- 1 contact input for limit switch
- 1 relay output to trigger gate controller
- 1 low voltage analogue input for gate motor position identification
- Configuration with WIFI hotspot mode via dedicated WEB site
- Full remote management via WEB interface (configuration, diagnostics)
- AES-128 encrypted communication
Open and close your garage door with free application.
- No SIM card and no additional monthly fee for network usage
- Unlimited number of users, signal recipients and distance
- Simple installation (no need for router setting)
- Control and monitor the gate on one platform
- Compatible with most types of gate motors
Applications:
-
DP Door-I Smart Garage Door Opener
Read more
- Keine SIM-Karte und keine Monatsgebühr
- Grenzlose Fernbedienung, sowie Benutzer- und Meldungsanzahl
- Leicht und schnell installierbar (keine Routereinstellung notwendig)
- Steuerung- und Zustandsbeobachtung in einem Plattform
Hersteller: DUPOL Gmbh Ungarn
-
DP Door-I WLAN Garagentorsteuerung
Read more
Application

-
DP GSM Türsprechanlage
Read more
Communicator with 8 contact inputs and WIFI + 2G (GPRS) network connection

Features

8 contact inputs with configurable event codes

2 parallel communication channels, WIFI and 2G (GPRS) mobile communication

Signalling to 2 independent remote monitoring receivers in SIA IP format

Setup via PC software, USB connection

TTL/RS-232 serial port for remote programming of alarms (Paradox and DSC)

Full remote management via WEB interface (configuration, diagnostics)

AES-128 encrypted communication option

Application

Remote monitoring device, for equipment with contact outputs
(e.g. alarm panel, fire alarm system, ATM)
-
I8 W2G
Read more

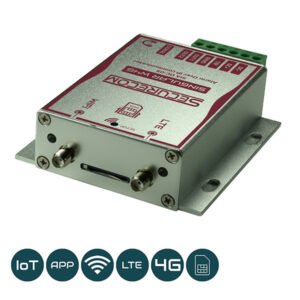

Communicator with 8 contact inputs and WIFI + 4G (LTE) network connection

Features

8 contact inputs with configurable event codes

2 parallel communication channels, WIFI and 4G (LTE) mobile communication

Signalling to 2 independent remote monitoring receivers in SIA IP format

Setup via PC software, USB connection

TTL/RS-232 serial port for remote programming of alarms (Paradox and DSC)

Full remote management via WEB interface (configuration, diagnostics)

AES-128 encrypted communication option

Application

Remote monitoring device, for equipment with contact outputs
(e.g. alarm panel, fire alarm system, ATM)
-
I8 W4G
Read more
Digital receiver for monitoring stations, up to 2500 endpoints

Features

Compact monitoring receiver, handling up to 2500 endpoints

Static or DHCP network configuration

USB and serial (RS-232) interface for PC connection

Receiving SIA DC-09 protocol messages

Encrypted communication option (AES-128)

Individual monitoring settings for each account

Account identification also by IP Address/MAC/IMEI

Continuous monitoring of LAN and WAN connection

Client IP address display in monitoring software

Local programming via USB, remote programming through IP network

Event list monitoring from web browser

Firmware update function

Application

Remote monitoring receiver for SIA IP protocol signalling communicators
-
IPR-2500
Read more
Digital receiver for monitoring stations, up to 5000 endpoints
Features

Monitor and receive signals from up to 5000 endpoints

Static or DHCP network configuration

Monitoring of test code, with a time individually defined for each endpoint

ONLINE i.e. active and OFFLINE i.e. disconnected devices indication

Individual disabling of endpoint devices, blocking unwanted communication

USB and serial (RS-232) interface for PC connection

Receiving SIA DC-09 protocol messages

Encrypted communication option (AES-128 or AES-256)

Individual monitoring settings for each account

Continuous monitoring of LAN and WAN connection

Client IP address display in monitoring software

Local programming via USB, remote programming through IP network

Event list monitoring from web browser

Firmware update function
Application

Remote monitoring receiver for SIA IP protocol signalling communicators
-
IPR-5000
Read more
