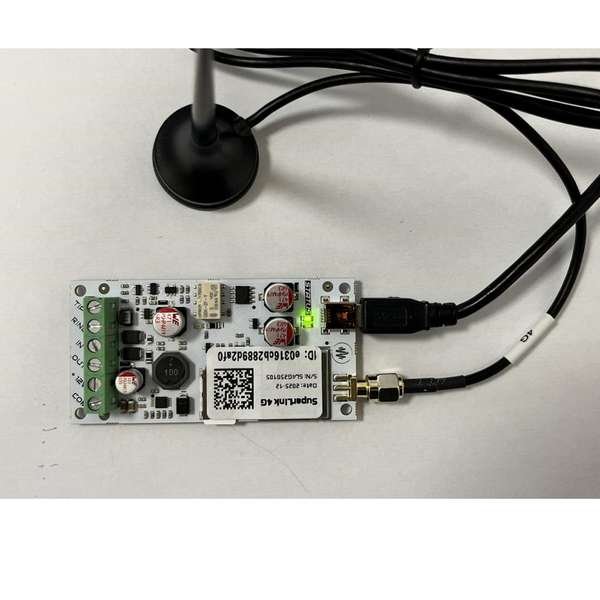

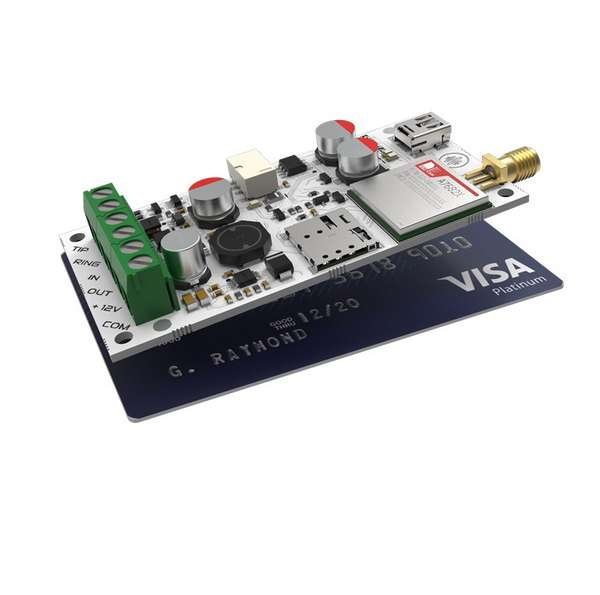

SuperLink 4G
It converts the Contact ID report codes of alarm panels to SIA IP format and then transmits them to monitoring receivers via the 4G network.
By triggering the device’s contact input, it sends a signal to the monitoring receiver with the set event code.
The device’s relay output is controlled by a mobile application to arm or disarm the connected alarm panel.
Features
- 4G (LTE Cat1) network connection
- Phone line simulation for alarm panels
- 1 contact inputs with independent signalling
- 1 relay output for alarm control
- Handling 2 independent alarm monitoring receivers
- IP connection with UDP or TCP protocols
- Full remote management via puloware.com website
- Configuration with PC software, connecting with USB cable
Application
- Connecting new and existing alarms to 4G networks
- Alarm communicator for remote monitoring receiver
- End-user notification via mobile App (optional)
SuperLink 4G user manual (en):
