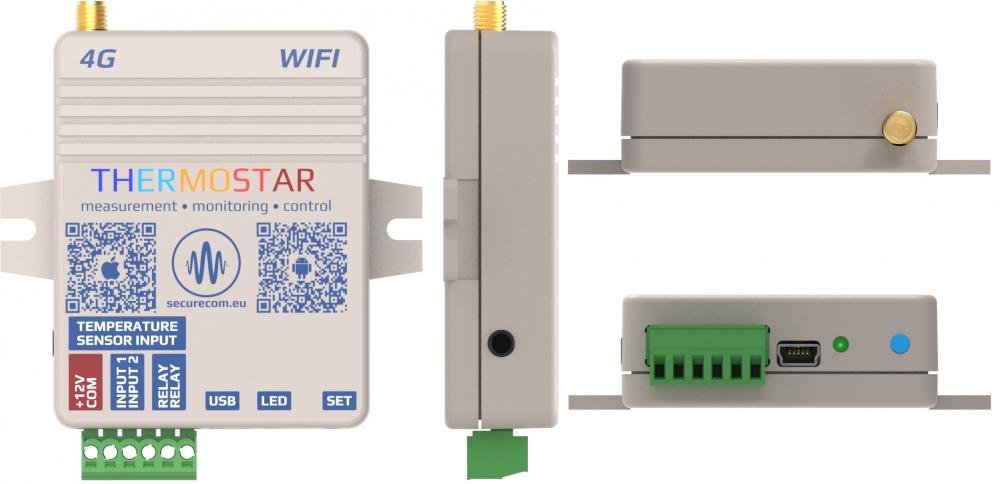

THERMOSTAR W4G
Online thermometer with mobile app, temperature alarm and remote thermostat with the following functions.
– Temperature measurement in real time, i.e. the current temperature measured by the external thermometer probe connected to it is continuously sent to the users’ phone.
– Sends an alarm notification via “Push notification” message with an acoustic signal to the user’s phone if the set (upper/lower) temperature threshold is exceeded. The alert sound is continuous, repeating until a user acknowledges the notification on their phone.
– Automatic thermostat function which can be set to COOL and HEAT and the function can be enabled or disabled remotely.
– Sending a change of contact input from 2 independent inputs to the mobile application or to a monitoring receiver.
– Sending of remote monitoring alarms according to SIA DC-09 standard with unique event code when alarm temperature threshold is exceeded and reset.
- Network connection: WIFI (2.4GHz) + LTE (4G) in parallel
- Temperature measurement in real time
- Temperature alarms in push message
- Automatic thermostat function
which can be set for both COOLING and HEATING - Thermostat function can be remotely enabled or disabled
- 2 contact inputs with independent signal transmission
- Wide measuring range: -55°C/+125°C
- Integrated remote monitoring module (SIA DC-09 IP protocol)
- 1 relay output, NO potential free contact
- Package contents: thermometer probe, 4G antenna,
antenna, power supply (230VAC), USB cable and the device
- Temperature monitoring in real time, from an application
- Automatic thermostat with remote enable and disable
- Alarm for exceeding lower and upper temperature thresholds
- Alarm from contact input
- User acknowledgement of alarm recorded in event list
- Temperature control in extreme environments (IP68)
- Remote monitoring of temperature change
- Food industry, agriculture, building services, etc.
ThermoStar W4G user manual (en):
