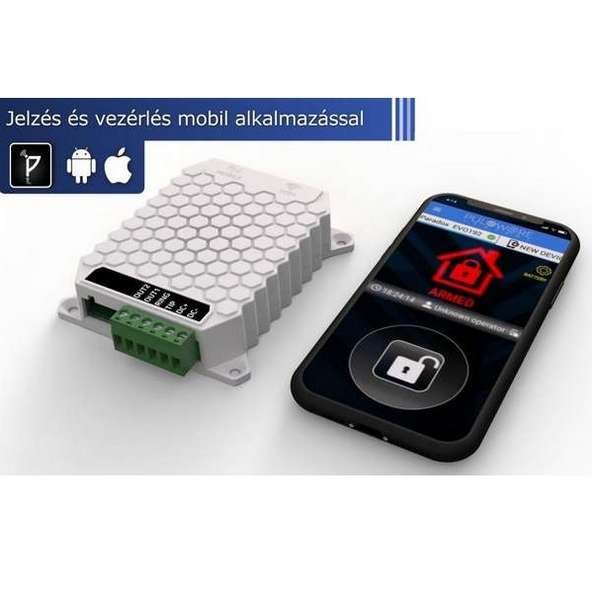

VAMPIRE is a modern security signalling and control system that adds a smartphone app to an alarm system that is connect to remote monitoring.

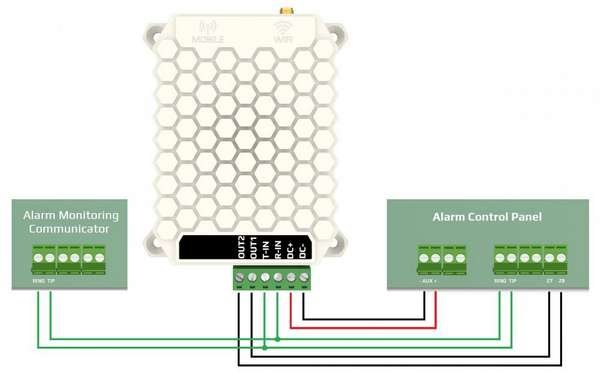

The device connects directly to the active TIP/RING line provided by the existing remote monitoring communicator for the alarm.
When the alarm panel sends reports to the monitoring receiver in Contact ID format,
the device intercepts the event codes from the line and sends them to the user’s phone as a “push notification”.

In addition, the VAMPIRE is able to control the alarm panel remotely via the application (arm/disarm, up to on 2 partitions) using its contact relay outputs.
The events are signalled and the alarm system control via the Internet network over a WIFI connection.

The VAMPIRE is connected to the existing system in accordance with ETS 300 001,
so it has no effect on the communication telephone line of the remote monitoring communicator
and therefore no effect on the remote monitoring signal transmission,
since the circuit is passive in the direction of the TIP/RING line and the input impedance is greater than 10Mohm.
The module can only be used to monitor CONTACT ID communication and does not work as a stand-alone communicator!
