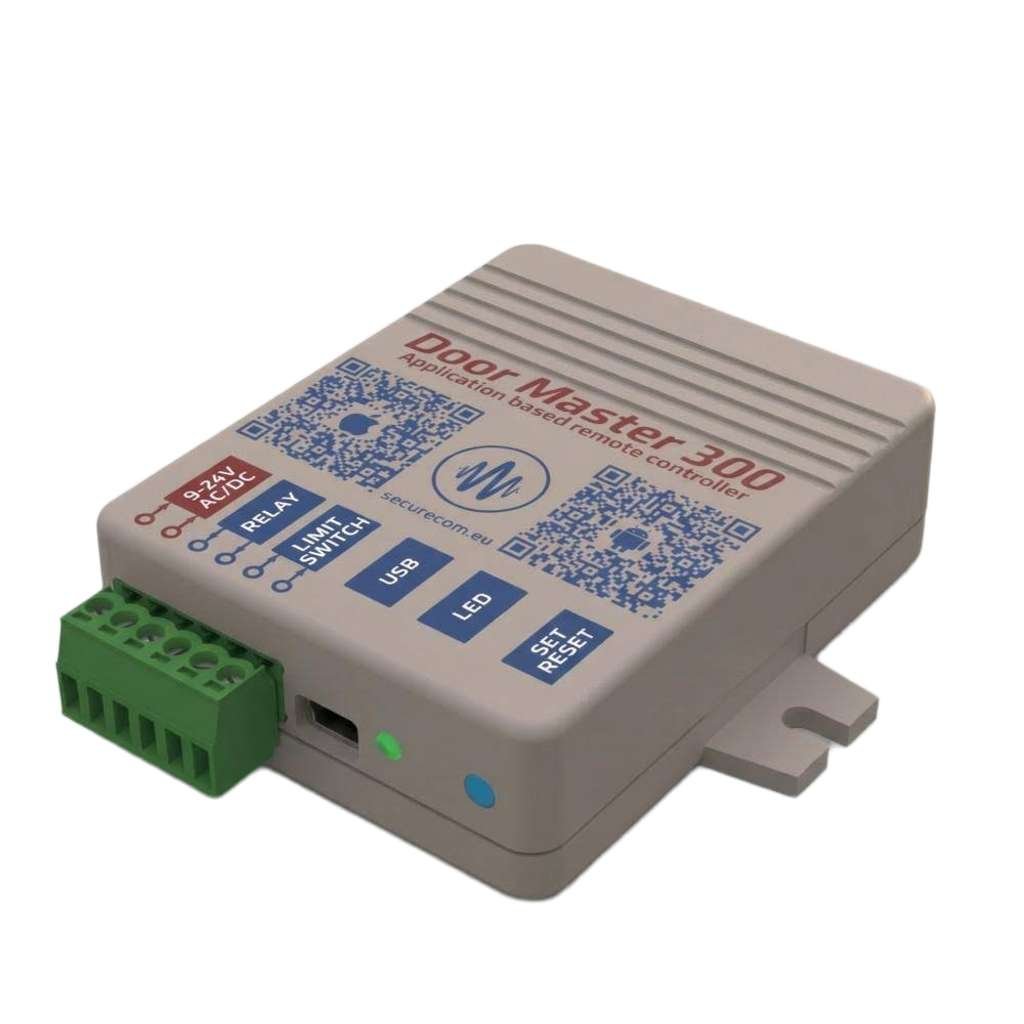

DP Door 300 gate opener device
DP Door 300 is an advanced gate opener or garage door control device, operating with WIFI connection over Internet or direct command sending through Bluetooth, providing the following functions:
- Remote controlling of gate or garage door for up to 300 users, via PULOWARE app
- Signaling the OPEN or CLOSED status on the smartphone application
- Signaling the opening and closing by “push notification”
- Setting an alarm in case the gate is left open too long
- Scheduled automatic opening periods can be set (e.g. Mo-Fri/08-17)
- Backup Bluetooth connection for local control in case of internet failure
When the device is controlled from the PULOWARE mobile app, it closes the output contact for 1 second and sends the dry contact signal to the connected “open/close” input of any gate drive controller. The gate status information (OPENED or CLOSED) is gathered from the magnetic door contact, that must be installed in the appropriate position and connected to device input. When any user opens or closes the door, the device can send a notification to all users or only for specified users, showing the position of the garage door and who opened or closed it.
Features
- Simple mobile app, unlimited control distance
- WIFI and Bluetooth communication
- Control and status monitoring
- Alarm if left open and automatic timed opening
- Restriction of user rights
- Event list query
- Full remote management via WEB interface
Application
- Gate control from a mobile app gate opener
Technical details of Smart Garage Door Opener
| Network connection: | WIFI 2.4GHz (IEEE 802.11 b/g/n) and local Bluetooth 4.1 |
Alert notifications | Push notification |
| Supply voltage: | 9-24V AC or DC |
Inputs: | 1 (NO/NC) |
| Outputs: | 1 relay (NO) dry contact, 1mp pulse switching |
Rated current: | 80mA |
Maximum current: | 100mA |
| Operating temperature: | -40°C – +85°C |
| Weight: | 100g |
| Dimensions: | 77 x 73 x 21 mm |
DP Door 300 user manual (en):
